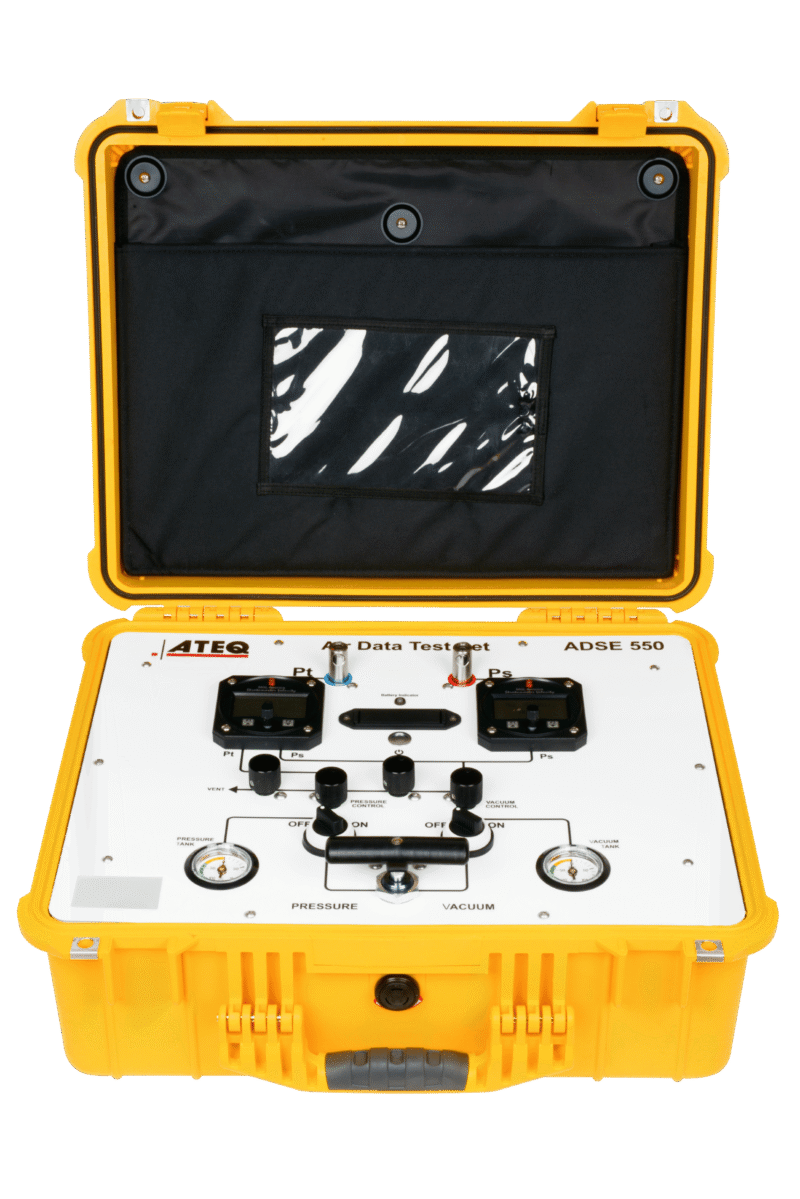

ADSE 550 Pitot-Static Tester
Portable Manual Air Data Test Set
The ATEQ ADSE 550 is a portable pitot-static tester (ADTS) designed for aircraft maintenance and ground testing.
It enables technicians to test pitot and static systems for leaks and check pressure-dependent flight instruments including altimeters, airspeed indicators and vertical speed indicators.
Compact, rugged and fully manual, the ADSE 550 provides a simple and cost-effective solution for routine pitot-static testing in the hangar or on the flight line.
30,000 ft
Max Altitude
220 kts
Max Speed
12 Kg
Weight
Up to 8 days
Battery autonomy
ADSE 550: SPECIFICATIONS
| General details | |
|---|---|
| Temperature range | Operating -10°C to 50°C (14°F to 122°F) Storage -20°C to +60°C (-4°F to 140°F) |
| Housing | Water resistant CE and MIL STD462D marking |
| Dimensions | 515 × 380 × 270 mm (20.3 × 15 × 10.6 inch) |
| Weight | 12 kg (26.5 lbs) |
| Power and Battery | 4 AA batteries → Autonomy up to 8 days |
| Flow measurement | ||
|---|---|---|
| Function | Range | Accuracy |
| Altitude | -700 to 30,000 ft | ± 30 ft at sea level |
| Rate of climb | Up to ± 10,000 ft/min | ± 2% |
| Indicated airspeed | Up to 220 kts | ± 1% at 70 kts |
- On-going developments may cause a change in specifications without notice.
- Special developments may be considered on a case-by-case basis.
ADSE 550 : FEATURES
Accurate

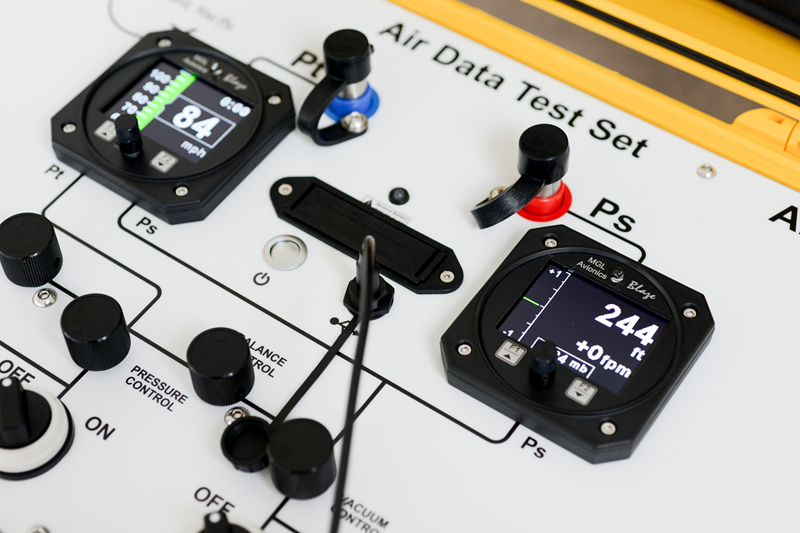

Accurate ground-level simulation of altitude, airspeed and vertical speed via Ps/Pt channels and proven, stable transducer technology.
Reliable
Reliable pitot-static testing for any aircraft, with wide adapter compatibility for accurate pressure-dependent instrument checks in the hangar or on the flight line.
Simple and user friendly
Compact, rugged and easy to operate, the ADSE 550’s manual pressure and vacuum pumps keep technicians in full control at every step.
Cost effective
A cost-effective solution for routine MRO checks, helping maintain onboard instruments while reducing maintenance time and maximizing return on investment.
ADSE 550 : AT A GLANCE
OUR BROCHURES
ADSE 550 FAQ’s
The ADSE 550 aircraft pitot-static tester generates controlled pressure and vacuum to simulate flight conditions while the aircraft remains on the ground.
Maintenance technicians can use it to verify altitude, airspeed and vertical speed indications, perform pitot and static leak tests, and check pressure-dependent onboard instruments.
The ADSE 550 can be connected to aircraft pitot tubes and static ports using compatible ATEQ / Cobra Systems pitot-static adapters and test kits.
The ADSE 550 Air Data Test Set includes:

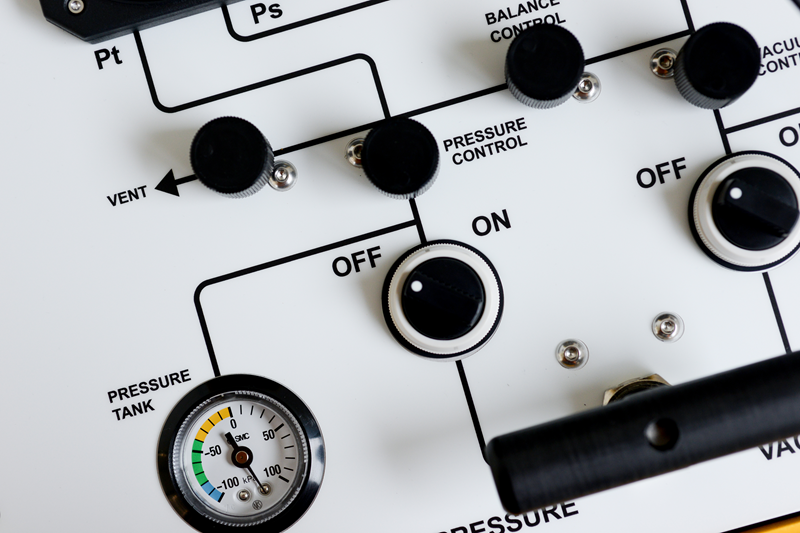

- Hand-operated vacuum pump
- Hand-operated pressure pump

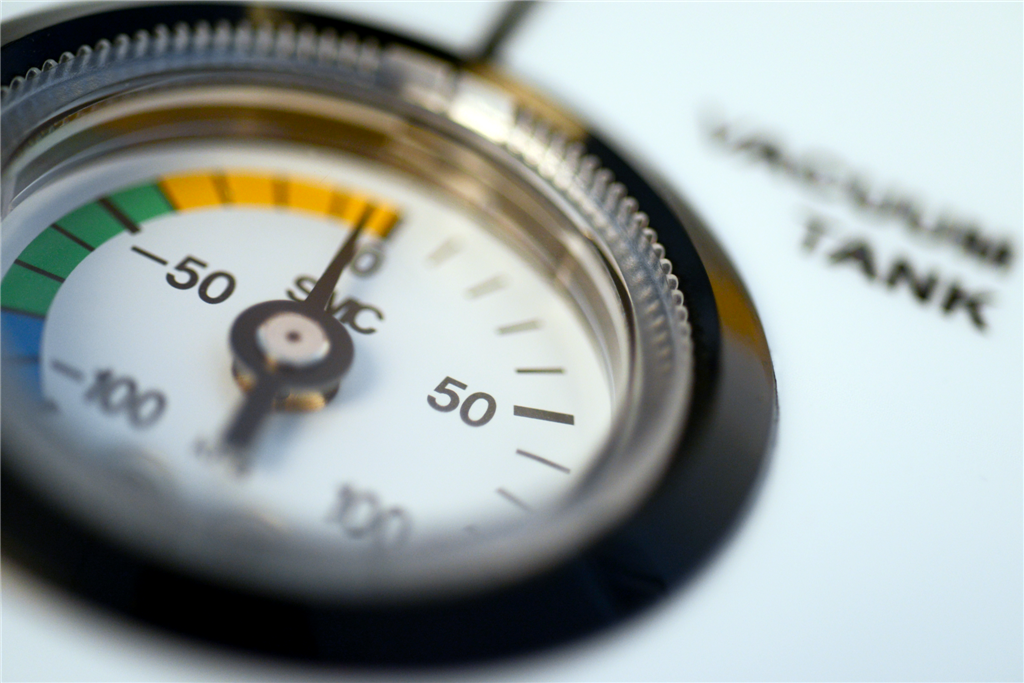

- Vacuum and pressure gauges
- 5 control valves
- Altimeter
- Airspeed indicator
- Two 25 ft hoses
It can be used for pitot and static leak testing and for checking instruments such as altimeters, airspeed indicators, vertical speed indicators, air data computers and pressure sensors.
No. The ADSE 550 uses integrated hand-operated pressure and vacuum pumps, making it a self-contained solution for field and hangar testing.
